Avoid Wrong Blades: Exact Prado Wiper Size by Model Year and Arm Type
Most Toyota Land Cruiser Prado owners need a driver-side blade about 650 mm (26 inches), a passenger-side blade around 500 mm (20 inches), and a rear blade near 300 mm (12 inches) if fitted with a rear wiper. That’s the common spec for the popular 150 series, but the 120 series and the new 250 series run different numbers entirely. Check the chart below against your build year before you order, because trim variations do exist.
TL;DR:
- The driver-side wiper for most Prado models measures around 650 mm for the 150 series but varies between 550 and 600 mm for the 120 and 250 series.
- Measuring the current blade tip to tip is the most reliable way to determine the correct size, especially since fitment differs across series and build years.
- Arm type—hook, pinch tab, or bayonet—is crucial for proper installation, and mismatched adaptors can cause improper wiping or damage.
- Most Prado wagons, regardless of series, typically have a 300 mm rear wiper, but some 150 series submodels use a 345 mm blade, so verification is essential.
- Ordering blades through vehicle-specific selectors backed by guarantees reduces the risk of incorrect fitment and simplifies the replacement process.
Table of Contents
- Prado wiper sizes by model series and year
- How do I measure my Prado’s wiper blades?
- What wiper arm types does the Prado use?
- How do I replace the wiper blades on my Prado?
- Which blade style suits the Prado, and when should you replace them?
- How Com reduces the risk of ordering the wrong size
- The conventional wisdom on wiper sizing gets one thing badly wrong
- Where to buy the right size, guaranteed
- Sources
- FAQ

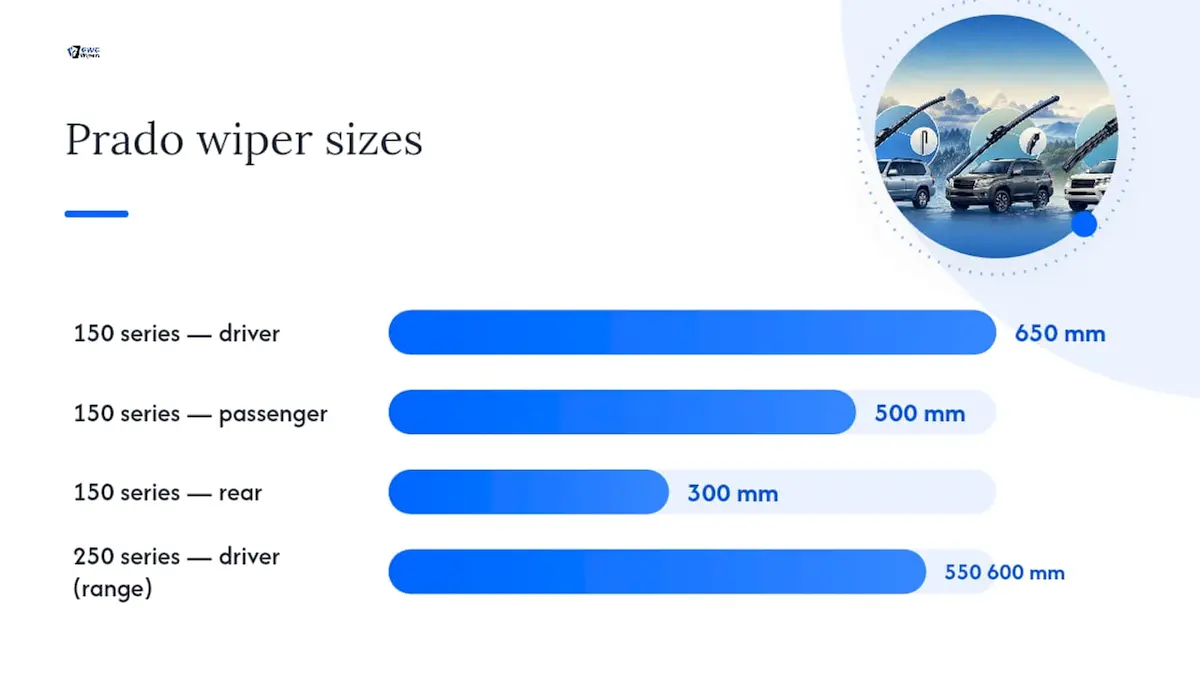

Prado wiper sizes by model series and year
Toyota changed the Prado’s windscreen profile and wiper arm setup across three distinct generations, so the “right” size depends heavily on which series sits in your driveway. Here’s how the sizing breaks down.
J12 / 120 series (approximately 2002 to 2009)
The 120 series Prado typically takes a smaller front pairing than later models, reflecting its narrower windscreen curve. Owners commonly report driver side blades between 550 mm and 600 mm (roughly 22 to 24 inches), passenger side blades about 450 mm (around 18 inches), and rear blades near 300 mm (12 inches) on wagons fitted with a rear wiper.
Because the 120 series spans seven model years with a mid-life update, sizing isn’t perfectly uniform across every build. If your Prado sits right on that 2005 to 2006 update boundary, it’s worth measuring the old blade before ordering rather than relying on the year alone.
J15 / 150 series (approximately 2009 to 2023)
This is the generation most Australian Prado owners are currently driving, and it’s the one with the clearest retail consensus. Multiple fitment references commonly cite driver blades around 650 mm (26 inches), passenger blades near 500 mm (20 inches), and rear blades about 300 mm (12 inches). Wipertech’s 150-series fitment kit confirms this exact 650/500/300 mm combination, and it lines up with what most Australian retailers list for the model.
That said, not every chart agrees on the finer detail. Wipersized’s year-by-year table shows some earlier 150-series years quoted closer to 600 mm on the driver side, with sizing tightening up to the 650 mm standard in later production runs. Cararac’s fitment guide adds another wrinkle: some submodels use a 345 mm (14 inch) rear blade instead of the more common 300 mm, so a rear-wiper mismatch is one of the more frequent ordering mistakes for this series.
250 series (2024 onwards)
The newest Prado brought a fresh windscreen shape, and the sizing has shifted again as a result. Early fitment data for the 250 series points to a smaller front driver blade, often around 550 mm to 600 mm (22 to 24 inches), a departure from the 150-series 650 mm standard. Some retailer fitment pages already flag this discrepancy for buyers moving from an older Prado into the new shape.
If you’ve just picked up a 250-series Prado and you’re used to ordering 650 mm blades for your old 150, verify the actual size needed as it may differ. Confirm against your specific VIN or run it through a Toyota Land Cruiser Prado fitment selector before you buy.

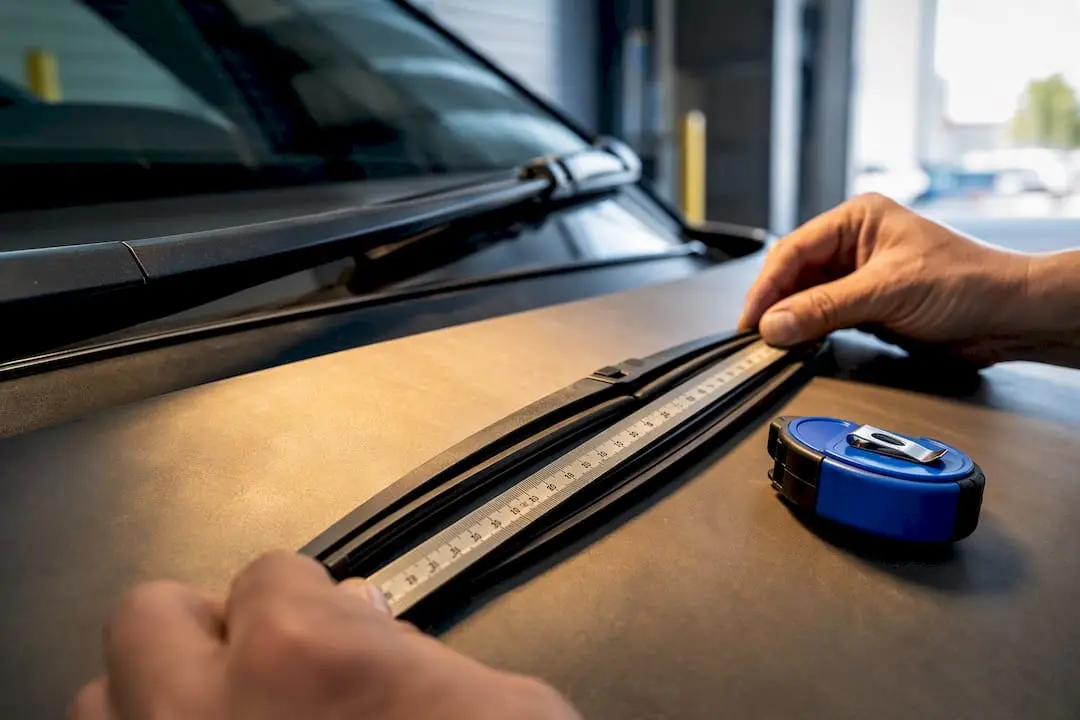

How do I measure my Prado’s wiper blades?
The chart above gets you close, but the only bulletproof method is measuring the blade currently on your car. Manufacturer specs sometimes list the arm length rather than the rubber wiping edge, and that mismatch is one of the most common reasons owners order the wrong size.
- Lift the wiper arm away from the windscreen so the blade sits clear of the glass.
- Measure the rubber wiping edge only, tip to tip, not the metal arm or the mounting frame.
- Round to the nearest common retail size rather than an odd number. Blades are sold in standard increments, typically in 25 mm steps.
- Convert if needed using the standard rule: 1 inch equals 25.4 mm, so a 26 inch blade is 650.4 mm, rounded to 650 mm in every retail listing.
Pro Tip: If you’re unsure whether you’re measuring the blade or the arm, run your finger along the black rubber edge. That’s the part doing the wiping, and it’s the only measurement that matters when buying a replacement.

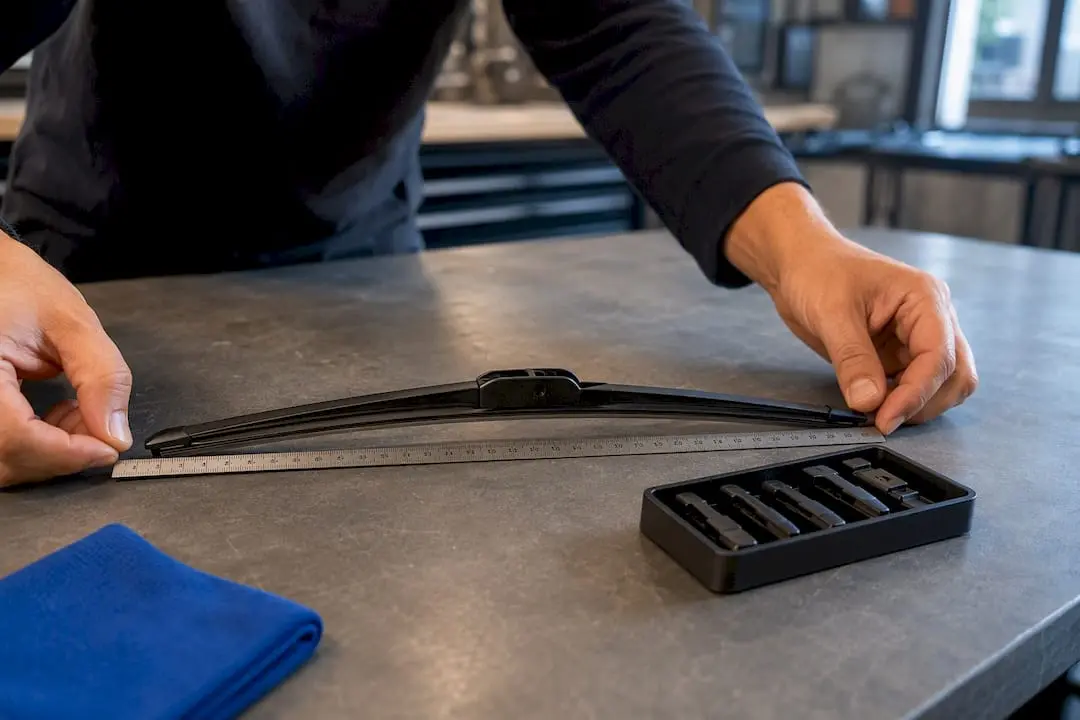

Removing the blade first makes this easier on tighter windscreen curves. Most Prado blades unclip with a small release tab, so you can lay them flat on a bench and measure without fighting the arm’s spring tension.
What wiper arm types does the Prado use?
Getting the length right solves half the problem. The other half is the arm connection, and this is where a lot of otherwise correct-size blades fail to seat properly.
- Hook arms are the most common fitting across all three Prado generations, using a curved J-hook that most aftermarket blades adapt to easily.
- Pinch tab (side-lock) arms appear on some 150-series and 250-series variants and need a specific pinch-tab adaptor rather than the universal hook.
- Bayonet-style arms show up on some higher trim levels and demand a dedicated bayonet adaptor, as they won’t accept a standard hook clip.
- Rear wiper mounts often use a completely different, smaller attachment than the front arms, so a rear blade purchased as an afterthought sometimes arrives with the wrong clip entirely.
Trimming a blade to force a fit, or jamming the wrong adaptor onto an arm it wasn’t designed for, is one of the more common installation mistakes on the Prado. A blade that’s forced into the wrong adaptor tends to sit slightly off the glass, which shows up as chatter or a thin unwiped strip along the edge of the sweep.
Pro Tip: Before you fit anything new, check whether your existing blade sits flush against the glass across its full length. A gap at either end usually means the adaptor, not the blade length, is the actual problem.
How do I replace the wiper blades on my Prado?
Replacement takes most owners under ten minutes once they know which arm type they’re dealing with. Here’s the process:
- Park on level ground, switch off the ignition, and lift both wiper arms into the service position (most Prados do this automatically when the key is off and wipers are activated once, or manually via the arm).
- Lay a towel across the windscreen edge near the bonnet line to catch the arm if it slips, protecting the paint and glass.
- Release the old blade by pressing the small tab (hook arms) or sliding the side-lock catch (pinch-tab arms), then sliding the blade off the arm’s hook or pin.
- Fit the correct adaptor to your new blade if it doesn’t come preassembled for your arm type, then clip the blade onto the arm until you hear or feel it lock.
- Lower the arm gently back onto the glass and repeat on the other side, then fit the rear blade the same way if your Prado has one.
- Run the wipers with washer fluid to check the sweep. A blade that chatters, skips, or streaks usually means it’s either the wrong length for that arm’s sweep arc or not fully clicked into the adaptor.
Which blade style suits the Prado, and when should you replace them?
Three blade styles dominate the aftermarket, and the Prado’s flat-ish windscreen curve suits all three reasonably well, though not equally.
- Conventional (frame-style) blades use a metal skeleton and are the cheapest option, but the exposed frame collects grime and can ice up in cold regional mornings.
- Beam blades use a single curved rubber strip with no external frame, giving even pressure across the glass and better resistance to Australian UV exposure and heat cycling.
- Hybrid blades combine a beam-style rubber edge with a low-profile plastic shell, a solid middle ground for drivers who want beam performance without the higher price tag.
Most manufacturers recommend replacing wiper blades every six to twelve months, but Prado owners doing regular outback or coastal driving often see the rubber perish faster from sun and grit. Streaking, juddering, or a visible split along the rubber edge are the clearest signs it’s time to swap them, whichever style you’re running. Wiping the blade edge with a damp cloth every few weeks and parking nose away from direct sun both add meaningful life to the rubber.
How Com reduces the risk of ordering the wrong size
Getting a Prado’s wiper size wrong by even one series generation is easy given how much the sizing shifts between the 120, 150, and 250 shapes. That’s exactly the gap Com’s vehicle selector tool is built to close: enter your Prado’s model and year, and it returns the confirmed blade set for that exact build rather than a generic series average.
Every kit ships with a fitment guarantee, backed by a 30-day money-back promise and a 12-month warranty, so an incorrect match doesn’t leave you stuck with unusable blades. Preassembled adaptors are included for common hook, pinch-tab, and bayonet arm types, which removes most of the guesswork covered in the fitment notes above.
The conventional wisdom on wiper sizing gets one thing badly wrong
Most buying guides treat “Prado wiper size” as if it’s a single fixed number you can memorise and reuse forever. That’s the wrong mental model. The Prado has run through at least three genuinely different windscreen shapes since 2002, and the 250 series proves Toyota isn’t done changing it.
The real skill here isn’t knowing that “26 inches” is common for the 150 series. It’s knowing that “common” doesn’t mean “universal,” and that a chart is a starting point, not a guarantee. Owners who skip the measuring step and order blind based on a forum post from three years ago are the ones who end up with a blade that chatters or leaves a dry strip along the glass.
Prioritise the arm type check over the length check if you have to pick one. A correctly sized blade on the wrong adaptor will still fail, but a slightly imprecise length on the right adaptor usually still wipes cleanly. Measure, cross-check against a chart, then let a vehicle selector settle any doubt. That order of operations beats guessing every time.
— Faisal
Where to buy the right size, guaranteed
Once you know your Prado’s series and arm type, ordering the correct blade shouldn’t be another guessing game. Com’s Toyota category page lets you select your exact Prado model and year, returning the confirmed front and rear sizes with the correct adaptor already fitted, so there’s no separate adaptor purchase or trial-and-error at the checkout.
Every order ships free across Australia, backed by a 30-day money-back guarantee and a 12-month warranty, so a fitment mismatch or a change of mind doesn’t cost you anything to fix. If your Prado’s build year sits right on a series boundary, or your arm type doesn’t match what you expected from the fitment notes above, Support teams can confirm the correct kit before you commit. Head to the Prado fitment page, select your model year, and check out with the sizing question already settled.
Sources
- Wipertech wiper blades for your Toyota Land Cruiser Prado 2009 - 2023 (150 Series)
- Toyota Land Cruiser Wiper blade sizes (1970-2025) w/ chart
- Recommended Sizes of Toyota Land Cruiser Prado Wiper Blades for Windshield and Rear Window
FAQ
What are the wiper blades for a Toyota Prado?
Sizing depends on the series: the 120 series (2002 to 2009) commonly runs 550 to 600 mm driver and 450 mm passenger, the 150 series (2009 to 2023) commonly runs 650 mm driver and 500 mm passenger, and the 250 series (2024 onwards) trends smaller again at roughly 550 to 600 mm driver.
Can I use 24 inch instead of 22 inch wiper blades?
No, not safely. A blade even one size too long can strike the windscreen surround, the A pillar, or the opposite wiper arm mid sweep, causing damage or an incomplete wipe pattern, so always match the exact length your series calls for.
What is the size of the Prado 250?
Early fitment data for the 250 series points to a driver blade around 550 to 600 mm (22 to 24 inches), smaller than the outgoing 150 series’ 650 mm standard, though this should be confirmed against your specific build using a vehicle selector.
How do I replace the wiper blades on my Prado?
Lift the arm into service position, release the old blade via its hook, pinch tab, or bayonet catch, fit the correctly adapted replacement until it clicks into place, then lower the arm and test the sweep with washer fluid running.
Do all Prado model years have a rear wiper?
Most Prado wagons across all three series include a rear wiper, commonly 300 mm (12 inches), though some 150 series submodels use a 345 mm rear blade, so it’s worth confirming yours before ordering a rear-only replacement.
