Mazda 3 wiper size guide: exact fitment by year
If you own a Mazda 3, you most likely need a 26-inch driver blade, 17-inch passenger blade, and 14-inch rear blade (for hatchback models) if your car was built from 2019 onwards. That combination covers the vast majority of Mazda 3 hatches and sedans currently on Australian roads, and it’s the number to have ready before you open a wiper blade listing.
Earlier generations run smaller. If your Mazda 3 was built before 2018, you’re more likely looking at a 24-inch driver blade paired with either an 18-inch or 19-inch passenger blade, depending on the exact year. We’ll walk through the full year-by-year breakdown below, but here’s the quick version for anyone standing in an auto parts aisle right now:
- 2019–2026 (BP generation, hatch and sedan): driver 26" (650–660 mm), passenger 17" (425 mm), rear 14" (350 mm) on hatchbacks
- 2014–2018 (BM generation): driver 24" (600 mm), passenger 18" (450 mm)
- 2010–2013 (BL generation): driver 24" (600 mm), passenger 19" (475 mm), rear 14" (350 mm) on hatchbacks
Match the size to your exact build year and body style, and confirm the adapter type before you buy. Getting the length right but the fitting wrong is the most common reason a “correct” wiper blade won’t actually clip on.
Key takeaways
Matching your Mazda 3’s exact build year and body style to the correct blade length and adapter type is the difference between a five-minute install and a returned parcel.
| Point | Details |
|---|---|
| Most common current size | 2019–2026 Mazda 3 hatch and sedan use driver 26", passenger 17", and rear 14" (hatch only). |
| Older models run smaller | 2014–2018 Mazda 3 typically uses driver 24" and passenger 18"; pre-2014 models may use passenger 19". |
| Confirm the adapter, not just length | Check for a side-pin, J-hook, or push-button fitting listed in the product description before ordering. |
| Always test after fitting | Run the washer fluid cycle and cycle low and high speed to check for streaking or a lifted blade. |
| Recommended fitment option | GWC Wipers’ vehicle selector confirms Mazda 3 sizing and adapter automatically, backed by a fitment guarantee and 12-month warranty. |
Table of Contents
- Mazda 3 wiper blade size by year and body style
- How do I confirm the right wiper size for my Mazda 3?
- What wiper arm and adapter does the Mazda 3 use?
- Which wiper blade type and brand should you choose?
- How do you install and test Mazda 3 wiper blades safely?
- Ready to order the right size for your Mazda 3?
- Sources
- FAQ

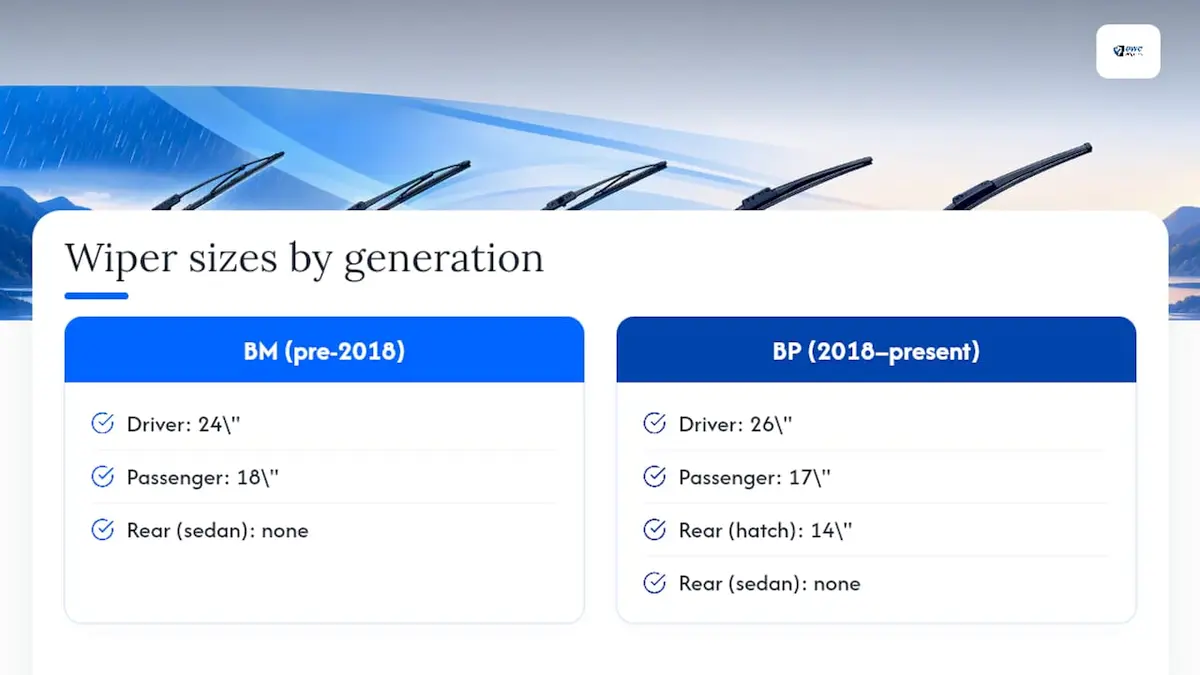

Mazda 3 wiper blade size by year and body style
Wiper sizing on the Mazda 3 has shifted twice across the model’s life, and both changes catch owners out because the visual difference between a 17-inch and an 18-inch blade is barely noticeable on the shelf.
The clearest jump happened around the 2018 model-year changeover, when Mazda moved from the older 24"/18" pairing on the BM generation to the 26"/17" pairing used on the BP generation that followed. A year-by-year Mazda 3 fitment chart confirms this shift and shows that hatchbacks and sedans within the same generation generally share the same front sizes, though rear wiper fitment differs because sedans don’t have one.
The 2019 Mazda 3 fitment listing matches this 26"/17"/14" pairing exactly, and LugSpec’s 2026 Mazda3 guide confirms the same factory sizes still apply on the current model. That’s genuinely useful to know: it means an owner replacing blades on a 2026 build can use the identical size pair that’s been correct since 2019, with no mid-generation surprises.
Quick rule of thumb: if your Mazda 3 has a rear wiper at all, it’s a hatchback. Sedans have never carried one across any generation, so don’t go looking for a rear blade size if you’re driving the sedan body style.
How do I confirm the right wiper size for my Mazda 3?
Getting the size chart right is only half the job. The other half is checking that chart against your actual car, because build-date variations and mid-year running changes occasionally mean a car doesn’t match the “official” year pattern.
- Check the owner’s manual fitment page first. Mazda’s own manual lists the exact factory size and includes a step-by-step wiper blade replacement procedure, and it’s the single most reliable source for your specific build.
- Measure the old blade if you’re still unsure. Lay a tape measure along the rubber edge, tip to tip, not including the plastic end caps. Round to the nearest even inch. Divide inches by roughly 0.0394 to get millimetres, or multiply mm by 0.0394 to get inches.
Pro Tip: Measure the blade you’re removing, not the one currently fitted if you suspect a previous owner installed the wrong size. A mismatched existing blade will feed you the wrong number every time.
What wiper arm and adapter does the Mazda 3 use?
Length is only one part of getting fitment right. The clip or adapter on the end of the blade has to match your wiper arm, and Mazda has used a couple of different styles across the model’s life.
- BP generation (2019–2026): typically uses a side-pin or top-lock style arm, with most retailers shipping a small side-pin adaptor pre-fitted to the blade.
- BM and BL generations (2010–2018): commonly use a J-hook style arm, one of the most widespread fittings in the industry, though some model years shipped with a push-button variant.
- Rear wiper arms (hatch only): almost always use a smaller, dedicated pin-type adaptor that’s easy to fit backwards if you’re not paying attention.
When you’re reading a product listing, look for language like “adapter included” or a specific adapter code rather than assuming a “universal” blade will click straight on. A blade advertised as fitting “most Japanese vehicles” without a named adapter is the single biggest cause of returns, because the length can be perfect while the clip mechanism simply doesn’t lock.

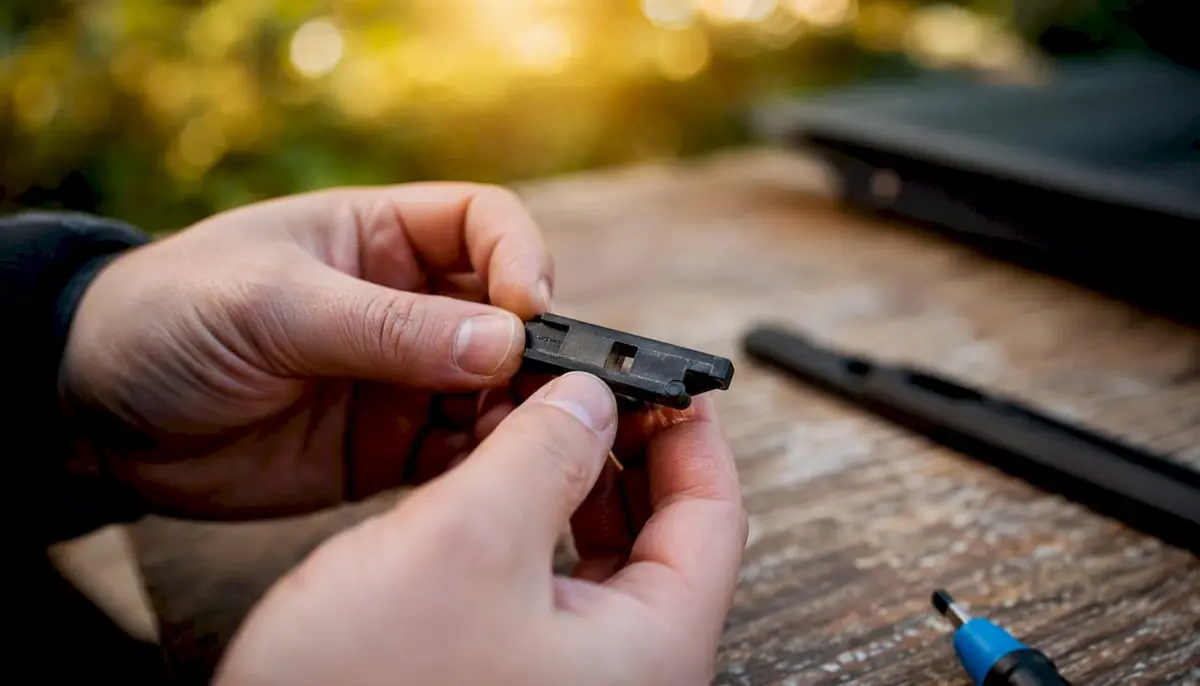

The most common fit issue owners report isn’t the front blades at all. It’s the rear wiper adaptor on hatchbacks, which is small enough that an incorrect or loosely preassembled fitting can look correct until the first wash cycle shakes it loose.
Which wiper blade type and brand should you choose?
Mazda 3 windscreens carry a noticeable curve, especially across the passenger side, and that curve is exactly where cheaper conventional blades with a rigid metal frame tend to lift and streak.
Beam-style (also called flat) blades use a single curved spring strip under a rubber sleeve instead of a jointed metal frame, which lets the blade flex evenly across a curved windscreen rather than pressing hardest at just two or three contact points. That’s why beam blades generally outperform conventional frame blades on Mazda’s curved glass, particularly at highway speed where wind lift becomes a factor.
Several well-known brands make correctly sized Mazda 3 blades, and Mazda’s own manual recommends genuine OEM replacement for the best wiping efficiency. In the aftermarket space, you’ll commonly find:
- Bosch (ICON range) — widely available beam blades with a solid reputation for durability.
- Rain-X — known for hydrophobic-treated rubber that sheds water faster between wipes.
- PIAA — lightweight silicone-rubber blades favoured for smoother, quieter operation.
- Jenok — budget-friendly beam blades that cover a broad range of Mazda fitments.
For Mazda 3 owners who want the sizing and adapter question solved in one step, GWC Wipers’ vehicle selector matches your exact model year and ships the correct adaptor already fitted, backed by a fitment guarantee that removes the guesswork this whole section is designed to help you avoid.
How do you install and test Mazda 3 wiper blades safely?
Fitting the right size blade is wasted effort if the install itself damages your bonnet or leaves the blade sitting loose. Mazda’s BP-generation cars in particular need a specific safety step before you touch the arms.
- Put the wipers into service position first. With the ignition on and then off, press the wiper stalk to MIST twice within 30 seconds. This raises the arms to a safe working height on many BP-generation cars and avoids forcing the arm against the bonnet line, which can crack paint or dent the panel if you lift it manually.
- Lay a folded towel across the windscreen edge under where the arm sits, in case the spring-loaded arm slips from your hand and snaps back onto bare glass.
- Release the old blade’s locking tab, slide it off the hook or pin, and confirm the new blade’s adaptor matches before clipping it into place.
- Push until you hear or feel a clear click. A half-seated blade will look fitted but lift at speed.
- Lower the arm back down gently rather than letting it drop.
Once both blades and the rear (if fitted) are on, run the washer fluid cycle and cycle the wipers on low and then high speed. Watch the full sweep for streaking, chatter, or a corner that doesn’t quite touch the glass. Not testing after installation is genuinely the most common mistake owners make, and skipping it is how a wrong-size or poorly seated blade goes unnoticed until the next rainstorm.
If a blade lifts at one end, the adaptor probably isn’t seated all the way. If it skips or chatters, check you haven’t fitted the driver blade to the passenger arm, since the curve profiles aren’t always interchangeable even when the length looks close.
A practical note on fitment confidence
I’ve worked through enough Mazda fitment charts to know where owners actually get tripped up, and it’s almost never the headline size. It’s the small print: the 2018 changeover catching out anyone assuming their “Mazda 3” is one fixed spec, or a rear adaptor that looks fitted but isn’t seated. That’s exactly why a proper vehicle selector matters more than a size chart alone, and it’s a big part of why GWC Wipers’ fitment guarantee and preassembled adaptors give DIY installers real confidence rather than a guess dressed up as a fit.
Ready to order the right size for your Mazda 3?
Once you know your build year and body style, ordering the correct blade shouldn’t involve trawling through five different fitment charts. Enter your Mazda 3’s model and year into GWC Wipers’ vehicle selector and it returns the exact driver, passenger, and rear sizes for your car, with the correct adaptor already fitted to the blade.
Every set comes with a fitment guarantee, free shipping across Australia, a 30-day money-back guarantee, and a 12-month warranty, so if a blade doesn’t seat properly or the fit isn’t right, you’re not stuck with it. GWC Wipers’ natural rubber construction and segmented pressure distribution are built specifically for the temperature swings and heavy downpours that Australian conditions throw at a windscreen. Check the full range of premium fitment options and run the washer-fluid test described above once your new blades are clicked into place.
Sources
Cross-check any size against your car’s own documentation before buying, since running changes within a model year do occasionally happen.
- Replacing windscreen wiper blades — Mazda owner manual
- Mazda 3 Wiper Blade Sizes (2004-2025) w/ Chart
- 2026 Mazda Mazda3 Wiper Blade Replacement Guide | LugSpec
- 2019 Mazda 3 Wiper Blade Size
- Putting the 2019 Mazda3 wipers into service position
If you’re ever in doubt, the owner’s manual or a proper vehicle selector tool beats any general chart, because both are built around your specific car rather than an average across the model line.
FAQ
What size wiper blades fit a 2015 Mazda 3 varies depending on the exact model and body style, but generally the BM generation sizes apply?
A 2015 Mazda 3 (BM generation) typically uses a 24" driver blade and an 18" passenger blade, with a 12" rear blade on hatchback models.
What size are the wiper blades on a 2019 Mazda 3?
A 2019 Mazda 3 uses a 26" driver blade, a 17" passenger blade, and a 14" rear blade on hatchback variants, based on the 2019 fitment listing.
What size wiper blade does a 2013 Mazda 3 need?
A 2013 Mazda 3 (BL generation) commonly uses a 24" driver blade and a 19" passenger blade, with a 14" rear blade on hatchbacks.
Are 2019 Mazda 3 wiper blades widely available?
Yes. The 26"/17"/14" size is one of the most common Mazda fitments, and it’s stocked by major aftermarket brands as well as fitment-specific retailers like GWC Wipers, which ships the correct adaptor pre-fitted.
Should I use OEM or aftermarket wiper blades on my Mazda 3?
Mazda’s manual recommends genuine OEM blades for the best wiping efficiency, but a correctly sized beam blade from a reputable aftermarket brand with the right adaptor performs just as well on the Mazda 3’s curved windscreen.
