Mazda MX-5 wiper blade specs: your complete guide
TL;DR:
- Getting the correct Mazda MX-5 wiper blade sizes and connector types is essential for safe visibility and avoiding windscreen damage. Sizes vary across the four generations, with detailed measurements and compatible designs tailored to each model’s windscreen profile and climate conditions. Regular replacement and proper maintenance, including cleaning and choosing silicone or hybrid blades, ensure optimal performance in Australian weather.
The Mazda MX-5 wiper blade specification is defined by exact blade lengths and connector types matched to each model generation, and getting these wrong puts both your windscreen and your safety at risk. Across the four MX-5 generations, NA through ND, blade sizes shift meaningfully from one era to the next. Wrong sizes cause gaps or uneven wear on the windscreen, which means a rough guess at the parts counter is never good enough. This guide gives you the exact Mazda MX-5 windshield wiper specs, connector guidance, and maintenance advice you need to get the right blades fitted and keep them working in Australian conditions.
What are the exact Mazda MX-5 wiper blade sizes by generation?
The Mazda MX-5 wiper blade specification changes with each generation, so the first step is knowing which generation you own. The four generations are the NA (1989–1997), NB (1998–2005), NC (2005–2014), and ND (2015–present). Each uses a different combination of driver and passenger blade lengths.
The NA uses 18-inch blades on both the driver and passenger sides, making it one of the simpler generations to shop for. The NB shifts to a 17-inch driver blade with a smaller passenger blade of around 15–16 inches, though exact sizes can vary by model year within that generation. The NC returns to matched 18-inch blades on both sides. The ND moves up to a 19-inch driver blade paired with an 18-inch passenger blade, reflecting the wider windscreen profile of the modern roadster.

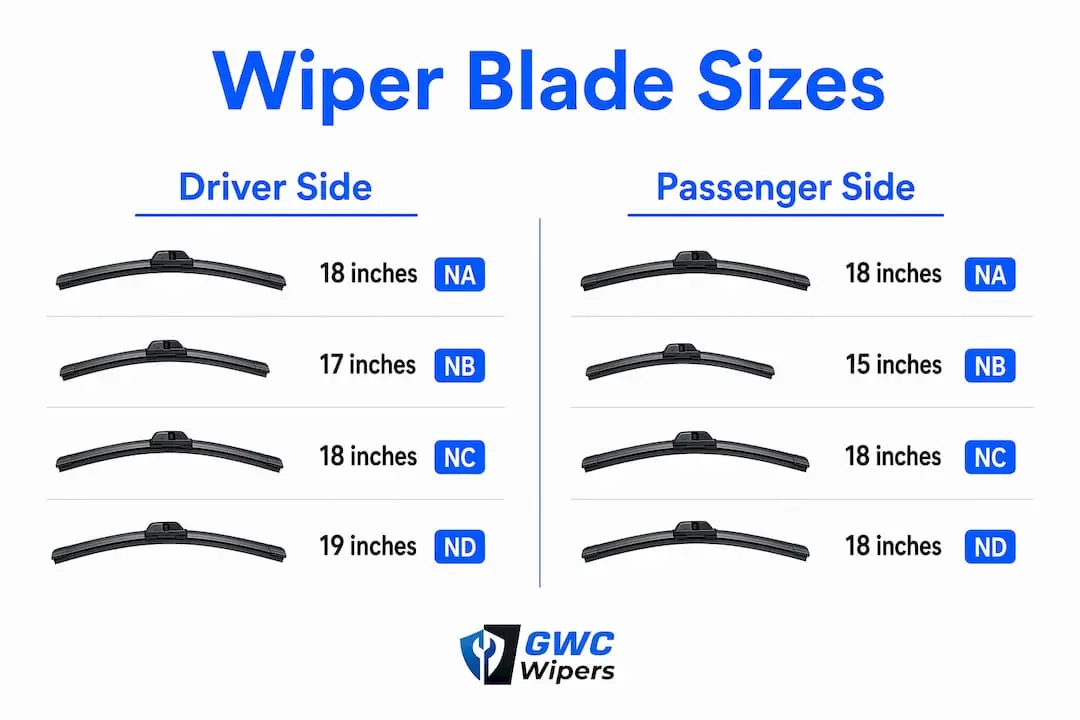

The table below summarises the sizes at a glance.
| Generation | Years | Driver blade | Passenger blade |
|---|---|---|---|
| NA | 1989–1997 | 18" / 450mm | 18" / 450mm |
| NB | 1998–2005 | 17" / 425mm | 15–16" / 380–405mm |
| NC | 2005–2014 | 18" / 455mm | 18" / 455mm |
| ND | 2015–present | 19" / 480mm | 18" / 455mm |
One detail worth noting on the ND: some sources list the 19-inch blade on the passenger side rather than the driver side. ND sizing varies depending on the specific trim and market. Always cross-check against your owner’s manual or use a vehicle selector tool before purchasing.
Pro Tip: Measure your existing blades before you order. Lay a tape measure along the rubber element from tip to tip. This takes 30 seconds and eliminates any guesswork about which size applies to your specific build.
What connector types and blade designs suit the Mazda MX-5 wiper arms?
The connector type is the physical fitting that locks the blade onto the wiper arm. Getting the blade length right but the connector wrong means the blade will not attach at all. The MX-5 across most generations uses a standard hook-style connector, also called a J-hook, which is the most common fitting in the Australian market. Some ND models use a pin-style or side-pin connector depending on the trim level, so always confirm before purchasing.
Blade design is the second variable. The three main designs available for the MX-5 are:
- Frame blades (also called conventional or bracket blades): a metal frame holds the rubber element against the glass. These are the most affordable option and work reliably in mild conditions, but the frame can collect grime and lose even pressure over time.
- Beam blades: a single curved piece of material with no external frame. Beam blades maintain consistent pressure across the full sweep arc, which suits the curved windscreen profile of the NC and ND generations particularly well.
- Hybrid blades: a beam-style element enclosed in a protective shell. These combine the even pressure of a beam blade with protection from UV exposure and debris, making them a strong choice for Australian conditions.
The NC’s aerodynamic fit benefits from beam or hybrid designs because the curved windscreen demands consistent contact pressure across the full blade length. Frame blades can leave a gap at the centre of the arc on curved glass, which reduces wiping effectiveness.
Pro Tip: Always check the connector type listed on the blade packaging against your wiper arm before you leave the shop or confirm the fitment guarantee before ordering online. A mismatched connector is the most common reason for a return.
How do Australian conditions affect MX-5 wiper blade choice?
Australian conditions accelerate wiper blade wear faster than most international benchmarks. Intense UV radiation causes rubber to crack and harden, heavy summer downpours demand reliable wiping performance, and the temperature swings between seasons stress the blade material repeatedly. Australian drivers should replace wiper blades approximately every six months rather than the 12-month interval common in cooler climates. That shorter cycle is not overcaution. It reflects the real rate of UV and heat degradation on standard rubber.
The signs that your MX-5 blades need replacing are:
- Squeaking during operation, which indicates the rubber has hardened and is no longer flexing smoothly against the glass.
- Streaking, where the blade leaves lines of water rather than clearing a clean arc.
- Shuddering, a juddering motion across the windscreen caused by uneven rubber contact.
- Visible cracking or splitting along the rubber element, which you can spot with a quick visual check.
- Lifting at speed, where the blade loses contact with the glass at highway speeds due to aerodynamic pressure.
Worn blades risk scratching the windscreen directly. Once a blade’s rubber wears through to the metal or plastic backing, that backing drags across the glass and leaves permanent scratches. Windscreen replacement is far more expensive than a set of blades.
Silicone blades last up to twice as long as standard rubber blades and carry hydrophobic properties that cause water to bead off the glass rather than smear. For MX-5 owners in Queensland, Western Australia, or the Northern Territory, silicone or silicone-coated hybrid blades are the practical choice. The UV resistance of silicone material means the blade holds its flexibility through summer heat that would harden a rubber blade within months.
Pro Tip: Run a damp cloth along your blades once a fortnight. Road grime and tree sap build up on the rubber edge and cause streaking long before the blade itself is worn out. A quick clean extends the effective life of any blade type.
How to properly replace Mazda MX-5 wiper blades
Replacing MX-5 wiper blades is a straightforward DIY task that takes under ten minutes once you have the correct blades in hand. The steps below apply to all four MX-5 generations.
- Confirm your sizes and connector type before purchasing. Use the table above or your owner’s manual to verify the driver and passenger lengths for your generation.
- Lift the wiper arm away from the windscreen until it locks in the raised position. Hold it firmly. If the arm snaps back without a blade attached, it can crack the glass.
- Locate the connector release tab where the blade meets the arm. Press or slide the tab to release the blade from the hook.
- Slide the old blade off the arm and set it aside.
- Align the new blade’s connector with the wiper arm hook. Push it upward until you hear a firm click. A loose connection means the blade will lift at speed.
- Lower the arm gently back onto the glass. Do not let it drop.
- Repeat for the passenger side, then test both blades with your washer fluid.
Beyond replacement, a few maintenance habits extend blade life significantly:
- Park in shade or use a windscreen cover when possible to reduce UV exposure.
- Lift the blades off the glass during extended periods of non-use, particularly in summer, to prevent the rubber from bonding to a hot windscreen.
- Never use blades to clear ice or heavy debris. The rubber element is designed for water, not scraping.
When to replace the entire wiper arm assembly rather than just the blade: if the arm no longer holds firm pressure against the glass even with a new blade fitted, the arm spring has weakened. A weak arm causes poor contact regardless of blade quality. MX-5 owners interested in broader MX-5 performance components will recognise this principle from other drivetrain parts. Worn springs deliver inconsistent results no matter what you bolt onto them.
Common compatibility considerations for Mazda MX-5 wiper blades
MX-5 wiper blade compatibility is straightforward within each generation but becomes less predictable across model updates and special editions. A few key points help you avoid common mistakes.
- NB sizing is the most variable. Within the 1998–2005 production run, Mazda made minor changes to the wiper arm geometry. Always verify the exact year, not just the generation, when ordering NB blades.
- OEM part numbers are your most reliable reference. Your owner’s manual or a Mazda dealer can supply the OEM wiper blade part number for your specific build. Aftermarket blades cross-reference these numbers to confirm fitment.
- Aftermarket beam and hybrid blades are widely compatible with MX-5 wiper arms, provided the connector type matches. Many aftermarket blades include an adapter kit with multiple connector types in the box.
- Do not assume blades from other Mazda models fit. The MX-5’s wiper arm geometry differs from the Mazda 3 or Mazda 6. Blade length may be similar, but the arm angle and connector position can differ enough to cause fitment problems.
- Universal blades carry risk. A blade marketed as “universal” may fit the connector but lack the correct curvature for the MX-5’s windscreen profile. This leads to poor contact and streaking. Fit-specific blades are always the better choice.
The best blade types for Australian drivers are those designed for the specific vehicle profile rather than adapted from a generic template. The MX-5’s low-slung, curved windscreen rewards a blade chosen for that exact geometry.
Key takeaways
The correct Mazda MX-5 wiper blade specification depends on your generation, with sizes ranging from matched 18-inch pairs on the NA and NC to a 19-inch and 18-inch combination on the ND, paired with a hook-style connector and a beam or hybrid blade design for best performance in Australian conditions.
| Point | Details |
|---|---|
| Size varies by generation | NA and NC use matched 18-inch blades; NB uses 17-inch driver; ND uses 19-inch driver and 18-inch passenger. |
| Connector type matters | Most MX-5 generations use a hook-style connector; always confirm before purchasing. |
| Replace every six months in Australia | UV and heat degrade rubber faster than in cooler climates, requiring shorter replacement cycles. |
| Silicone outlasts rubber | Silicone blades last up to twice as long and repel water more effectively in harsh Australian conditions. |
| Worn blades damage glass | Blades worn through to the backing scratch the windscreen, leading to costly repairs. |
Why I always tell MX-5 owners to check the spec first, not last
I have seen the same mistake repeated more times than I can count. An MX-5 owner buys a pair of blades based on a rough memory of the old ones, fits them, and then wonders why the driver’s side leaves a streak across the centre of the windscreen. Nine times out of ten, the blade is one inch too short or the connector is the wrong type for that generation. The MX-5’s low windscreen profile amplifies every fitment error. There is nowhere for a poorly seated blade to hide.
The generation gap between the NB and NC catches people out most often. Both cars look similar from the outside, but the wiper specs are different enough to cause real problems. The NB’s asymmetric blade sizing, with a longer driver blade and a shorter passenger blade, is easy to forget if you are used to the matched pairs on the NA or NC.
My honest recommendation for Australian MX-5 owners is to move to a silicone or silicone-coated hybrid blade at the next replacement. The regular replacement cycle for rubber blades in Australia is already shorter than most owners expect. Silicone extends that interval and performs better through summer heat. The upfront cost is higher, but the total cost over two years is lower, and the wiping performance is noticeably better in heavy rain.
One final habit that makes a real difference: clean your blades every time you wash the car. A quick wipe with a damp cloth removes the grime layer that causes early streaking. It takes 20 seconds and adds weeks to the effective life of the blade.
— Faisal
Wiper blades for your Mazda MX-5, delivered across Australia
Finding the right blades for your MX-5 should not require a trip to three different shops and a guess at the connector type. Com carries premium wiper blades matched to Mazda MX-5 specifications across all four generations, with a vehicle selector tool that confirms the correct size and connector for your exact build year.
Every blade Com supplies comes with a 12-month warranty, a 30-day money-back guarantee, and free shipping across Australia. The range includes silicone and hybrid options built for Australian UV and weather conditions. Whether you drive a classic NA or a current ND, you can find your MX-5 blades and order with confidence that the fit is right before the package leaves the warehouse. Com also stocks blades for a wide range of other vehicles, including the Suzuki Vitara and the BYD Atto 3, so you can sort the whole household in one order.
FAQ
What size wiper blades does the Mazda MX-5 ND use?
The Mazda MX-5 ND (2015–present) uses a 19-inch driver blade and an 18-inch passenger blade, though some trim variants reverse this pairing. Always confirm against your owner’s manual or a vehicle selector tool.
How often should I replace MX-5 wiper blades in Australia?
Australian motoring experts recommend replacing blades every six months due to UV radiation and heat accelerating rubber deterioration faster than in cooler climates.
What connector type does the Mazda MX-5 use?
Most MX-5 generations use a standard hook-style (J-hook) connector. Some ND trims use a pin-style connector, so confirm the connector type for your specific build year before purchasing.
Are silicone wiper blades worth it for the MX-5?
Yes. Silicone blades last twice as long as standard rubber and carry hydrophobic properties that improve water clearance, making them well suited to Australia’s UV-intense and variable climate.
Can I use wiper blades from another Mazda model on my MX-5?
No. The MX-5’s wiper arm geometry and windscreen curvature differ from other Mazda models. Even where blade lengths match, the arm angle and connector position may not, leading to poor contact and potential windscreen damage.
