Top Lock Wiper Blades in Australia: Fit, Install, Compare
Top lock wiper blades clip onto a wiper arm that has a small push button on top of the hook. You press the button, slide the old blade off, slide the new one on and listen for the click. The tricky part is not the click. It is buying a blade with the right connector and the right length for your exact car, because top lock is only one of several arm styles on Australian roads.
This guide shows you how to tell whether your car has a top lock arm, how the adapters differ, how to read a windscreen wiper size, how the main options compare and how to fit a blade without cracking your glass.
TL;DR
- A top lock arm has a hooked end with a push button on top. Look at it before you buy, because side lock, pinch tab, bayonet and hook arms need different connectors.
- Most modern blades ship with a set of adapters, so the connector matters as much as the blade itself.
- The driver and passenger blades are often different lengths. Check both, and check your car’s make, model and year.
- Fitting takes a few minutes: press the button, slide the blade off, clip the new one on, lower the arm gently and test with washer fluid.
- Check your exact fit at gwcwipers.com.au/wiper-blades before you order.
Table of Contents
- What a top lock wiper arm looks like
- Wiper blade connector types and adapters
- Windscreen wiper size: reading lengths correctly
- Top lock wiper blades by car make
- Comparing top lock options in Australia
- How to install a top lock wiper blade
- Our view: why connector fit matters more than the brand name
- Ready to order: GWC Wipers
- When to replace top lock wiper blades
- FAQ
- Find your perfect fit
- Sources
What a top lock wiper arm looks like
The wiper arm is the metal arm that sweeps across the glass. At its end sits a hook or clip that holds the blade. On a top lock arm, the hook is covered by a small plastic or metal tab you push down with your thumb. That button releases a locking pin, and the blade slides out along the arm.
It is often called a push button connector, and you will see the same fitting sold as top lock, push button or Denso top lock, depending on the brand. The names overlap, so rely on how the arm looks rather than the label on a box.
To identify yours, lift the arm away from the glass and look at the very end. If you see a hook with a small button or tab on top, you have a top lock arm. If the blade is held by a pin that goes through the side of the arm, that is a side lock. If you pinch two small tabs, that is a pinch tab. A plain J-shaped hook with no button is a hook arm.
Wiper blade connector types and adapters
The blade itself is only half of the fit. The other half is the connector, sometimes called an adapter, which sits in the middle of the blade and grips the arm. A single flat blade can be sold for several arm styles because the connector is swapped.
There are two common approaches:
- Preassembled adapter. The blade arrives with the right connector already fitted for your vehicle. You remove the old blade, click the new one on and you are done. This is how we set up blades at GWC Wipers, so you are not sorting through a bag of small plastic parts.
- Blade plus a connector kit. The blade comes with several adapters in the box, and you choose the one that matches your arm. This works well, but it is easier to pick the wrong one.
Some suppliers split blade and connector entirely. Trade press reported that Tridon FlexConnect separates blades and connectors so that fewer product codes cover more vehicle applications. That helps a retailer with limited shelf space. For you at home, it means you may need to match a connector to your arm yourself.
How to tell which adapter your arm needs
Use this quick check:

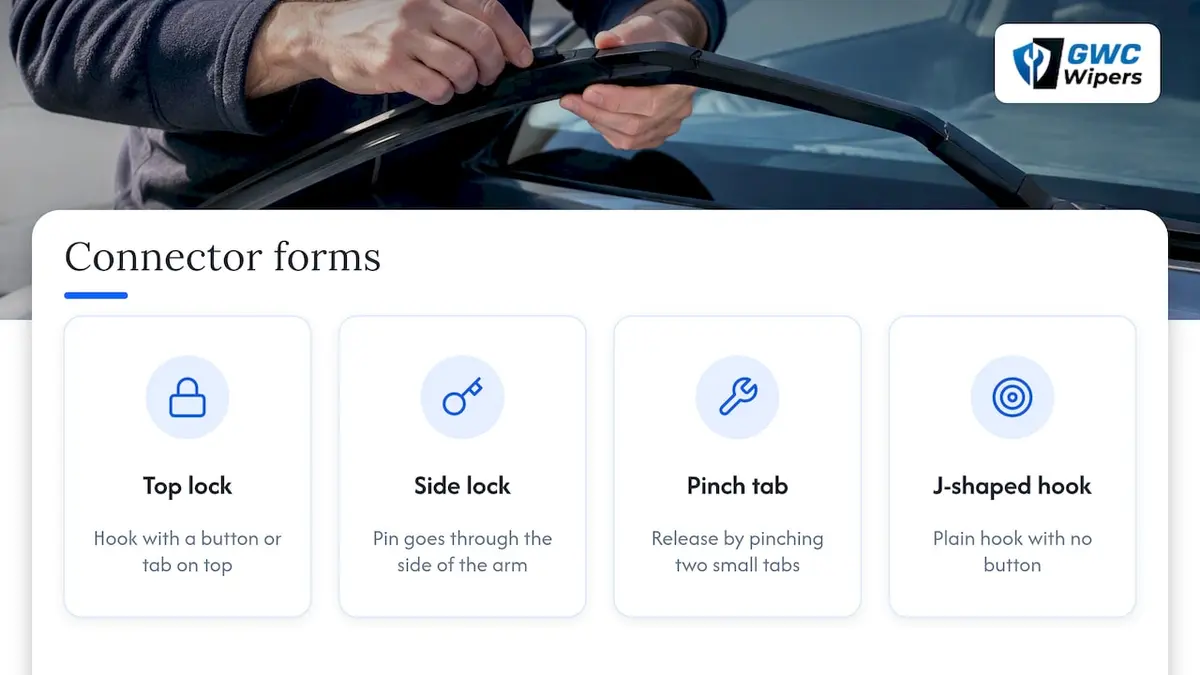

- Look at the end of the arm. Button on top means top lock. A pin through the side means side lock. Two tabs to pinch means pinch tab.
- Look at the old blade. The old connector is usually still clipped on, and the shape of the plastic often shows the type.
- Check the arm width. The hook on a top lock arm is a specific width, and connectors are made for a given width. A connector that wobbles is the wrong one.
- Use a vehicle selector. Entering make, model and year gets you the fitment the manufacturer lists, which avoids guesswork.
If your car had its arms replaced at some point, they may not match the original factory style. That is common after a windscreen or workshop repair, so look at the arm, not just at the brochure.
Windscreen wiper size: reading lengths correctly
Wiper sizes are given in either millimetres or inches, and many packs show both. A 600 mm blade is the same as a 24 inch blade. Most Australian listings use millimetres, with the inch figure alongside.
A few points save you from a wrong order:
- Driver and passenger sides are often different. A common layout is a longer driver blade and a shorter passenger blade, but it varies by model.
- The rear blade is separate. Hatchbacks and wagons often have a rear wiper with its own length and connector.
- Length changes across model years. A generation change can alter the windscreen and the arm, so a size for a 2012 model may not suit a 2019 one. Mercedes-Benz A-, B- and C-Class cars, for example, are listed by chassis generation, each with its own lengths.
- Do not just measure the old blade. The previous owner or workshop may have fitted the wrong size. Confirm against a fitment guide for your car.
For exact lengths by make, model and year, use the GWC Wipers vehicle selector. We cover more than 2,500 models, so you can enter your car and see the driver, passenger and rear fitments together. Our guide to vehicle specific wiper blades explains how that fitment guarantee works.
Top lock wiper blades by car make
Top lock arms turn up across many brands, especially European and Japanese models, but no make uses one style across every model and year. Treat the following as a starting point, then confirm on your exact car.
| Make | What to expect | Where to check your fit |
|---|---|---|
| Audi | Many models use a push button style arm, with different lengths across A1, A3, Q5 and others | Audi A3, Audi A1, Audi Q5 |
| Mercedes-Benz | Lengths and arm styles change by model and chassis generation | CLA-Class, GLC-Class, GLE-Class |
| BMW | Check by series and year, as arm types differ between older and newer cars | BMW wiper blades |
| Honda, Toyota, Mazda | Wide range of arm styles across the lineup, so match by exact model and year | Vehicle selector |
| Abarth, BYD | Newer or lower volume models, so confirm the arm and rear blade before ordering | Vehicle selector |
We have deliberately not printed a long list of sizes here. A table of lengths goes stale and invites a wrong order, whereas the selector reads the fitment for your specific year.
Comparing top lock options in Australia
You will find top lock compatible blades from a handful of brands in Australia, including Bosch, Tridon, Valeo, DENSO and GWC Wipers. Rather than rank them on claims we cannot verify, compare them on the things that decide whether a blade works for you.
| What to compare | Why it matters | What GWC Wipers offers |
|---|---|---|
| Fit for your car | A blade that is slightly long or short will lift or hit the trim | Vehicle specific fitment for over 2,500 models and a perfect fit guarantee |
| Connector setup | Loose adapters are easy to mix up | Preassembled adapters for easy installation |
| Rubber and build | Heat and UV break rubber down | Natural rubber, segmented pressure distribution, aerodynamic design, corrosion resistance |
| Warranty | Tells you how the seller backs the product | 12 month warranty |
| Returns | Lets you correct a wrong choice | 30 day money back guarantee |
| Delivery | Matters when you need wipers before the next storm | Free shipping Australia wide, with express shipping also offered |
Bosch and Valeo publish detailed fitment catalogues and install videos, DENSO is closely associated with the top lock push button style, and Tridon is a familiar name on Australian shelves. Check each brand’s own page for current pricing, since retail prices move and we do not quote them here.
Where GWC Wipers stands out is the buying experience. Our blades are designed for Australian conditions, and the fitment guarantee means that if the selector says it fits, we stand behind it. If you prefer walking into a shop and holding a blade, a parts store is a fair choice. If you want the right connector pre-fitted and delivered to your door, that is what we built the range for.
How to install a top lock wiper blade
The motion is simple, but small mistakes cause cracked glass or scratched paint. Work through this order.
- Have the new blades ready. Open the pack and check that each blade matches the old one in length and connector.
- Protect the glass. Lay a folded towel on the windscreen below the arm. Haynes recommends putting a towel on the glass and not letting the arm spring back onto it once the blade is off.
- Lift the arm. Raise it away from the glass until it locks upright. Some cars have a service position for the wipers, so check your owner’s manual if the arms will not lift.
- Release the old blade. Press the top button and slide the blade down and off the hook.
- Fit the new blade. If the connector is not already fitted, snap it onto the blade first. Then slide the blade onto the arm until the locking pin clicks. DENSO’s published instructions follow this same sequence.
- Tug gently. Give the blade a light pull to confirm it is locked.
- Lower the arm slowly. Rest it on the towel, then lift the towel away.
- Test with washer fluid. Haynes advises testing with the washers, not on dry or dusty glass, to avoid scratching.
If you want a quick visual walkthrough, major brands publish top lock install videos, and the steps are the same whichever blade you buy.
Clean the glass before you test
A new blade on a dirty windscreen can streak and chatter, and people then blame the blade. Wipe the glass first with a streak-free glass cleaning method so you are judging the blade, not the film on the windscreen. Our guide on washer fluid or new wipers walks through a five minute check to separate the two causes.
After a windscreen replacement, also test your wipers on the new glass. We explain why in our safety checklist.
Our view: why connector fit matters more than the brand name
We design and sell wiper blades for Australian conditions, and the same problem comes up again and again. Drivers choose a good blade, then discover that it does not clip onto their arm or that it is a few centimetres off. The fault is rarely the rubber. It is the match.
That is why we built our range around vehicle specific fitment and preassembled adapters. A blade is a safety part. When rain hits at highway speed, or a dusty summer road is smeared by a few drops, you need the wiper to sit flat across the glass and clear it in one pass. A blade that is almost right does not do that.
Australian conditions are hard on rubber. Cars24 notes that heat, dust, salt air, tree sap and bird droppings can wear wiper rubber down. That is why we use natural rubber and corrosion resistant construction, and why we offer a 12 month warranty.
Our advice is simple. Identify your arm, confirm your length by make, model and year, and choose a blade that arrives ready to fit. If you are unsure, our local support team is happy to help before you order.
— Faisal
Ready to order: GWC Wipers
If you want wipers matched to your car without the guesswork, start at the GWC Wipers store. Enter your make, model and year, and you will see the blades that fit. Every order comes with free shipping across Australia, a 30 day money back guarantee and a 12 month warranty. Express shipping is available if you need your blades sooner. Detailed guides are included, so fitting is straightforward.
When to replace top lock wiper blades
There is no single mileage rule. The signs matter more than the calendar:
- Streaks or smears that remain after cleaning the glass
- Chattering, skipping or juddering across the screen
- Rubber that looks split, cracked, hardened or peeling away from the frame
- Water beading unevenly or leaving bands of unwiped glass
- A squeak that returns soon after cleaning
Cars24 advises checking blade fitment and performance regularly. A blade left sitting in direct sun for a long summer will usually age faster than one in a garage, so parking in shade helps. If you are unsure whether the fault is the blade or the washer system, the five minute check in our washer fluid guide will tell you.
FAQ
Are top lock wiper blades the same as push button wiper blades?
In practice, yes. Push button and top lock are two names for a connector released by pressing a button on top of the arm’s hook. Some brands add their own name to it, so check the arm shape rather than the label.
Can I fit a top lock blade to a different type of arm?
Only if the blade comes with an adapter made for that arm. Many blades include several connectors, and ours come preassembled for your vehicle. Confirm your make, model and year at gwcwipers.com.au/wiper-blades first.
Do I need to replace both front blades at once?
It is sensible to. Both blades age at the same rate in the same heat and sun, and a worn blade on one side leaves a patch of poor visibility. Check the rear blade too if your car has one.
What if I order the wrong size?
With GWC Wipers, our perfect fit guarantee and 30 day money back guarantee are there for exactly this. Use the vehicle selector, and contact our Australian support team if something does not fit.
Find your perfect fit
Find wipers that fit your exact car at gwcwipers.com.au/wiper-blades.
